Precision CNC Machining for Drone & UAV Components
Lightweight, High-Precision Mechanical Solutions—from Prototype to Production
Drone and UAV systems depend on lightweight structures, precise alignment, and reliable mechanical performance. Small dimensional variations can affect motor balance, gimbal stability, payload alignment, assembly fit, and overall flight efficiency.
DMS Group-TW provides precision CNC machining and integrated manufacturing support for commercial drones, industrial UAVs, autonomous aerial systems, and related aerospace applications. Our capabilities cover motor components, structural parts, gimbal assemblies, payload mounts, avionics enclosures, and other custom mechanical components.
From early-stage DFM review and prototyping to low-volume and production-scale manufacturing, we help UAV developers turn complex designs into repeatable, production-ready parts.
OEM / ODM
Why UAV Manufacturers Work with DMS Group-TW
5-Axis CNC Machining for Complex UAV Geometries
UAV components often combine complex angles, internal features, tight positional relationships, and weight-saving geometries.
Our 3-axis to 5-axis CNC machining capabilities support complex 3D parts while reducing the number of setups required. Fewer setups help minimize accumulated positioning errors and improve consistency across critical interfaces.
These capabilities support prototyping, low-volume production, and volume manufacturing for components such as:
- Motor housings and mounts
- Gimbal brackets and payload frames
- Folding-arm joints
- Propeller hubs and adapters
- Structural connectors
- Avionics and controller enclosures
Thin-Wall Machining for Lightweight Structures
Reducing component weight can increase flight endurance and payload capacity, but thin-wall machining introduces challenges such as vibration, deflection, and dimensional distortion.
DMS Group-TW can manufacture thin-walled components with wall thicknesses down to 0.5 mm, depending on the material, geometry, tolerance requirements, and inspection plan.
Our engineering team evaluates machining sequence, toolpaths, workholding, and critical datums to help maintain dimensional stability while reducing unnecessary material.
Precision Extended from Optical and Vision-System Experience
DMS Group-TW applies its precision machining experience from optical and vision-camera components to UAV parts that require accurate alignment and controlled motion.
For critical features, tolerances down to ±0.005 mm can be supported, depending on part geometry, material, feature location, and inspection requirements.
This capability is particularly relevant to:
- Gimbal and camera-stabilization components
- Motor mounts and bearing interfaces
- Precision motor shafts
- Optical payload frames
- Sensor and avionics mounting structures
Tighter control at these interfaces can help reduce mechanical play, improve alignment, and support stable operation in rotating or motion-control assemblies.
DFM and Early Engineering Support
Manufacturing risks are easier and less expensive to resolve before production begins.
DMS Group-TW provides Design for Manufacturability (DFM) support during the early stages of UAV development. Based on the customer’s drawings, 3D models, functional requirements, and target quantities, our engineering team can review:
- Wall thickness and structural rigidity
- Machining access and tool clearance
- Functional versus non-critical tolerances
- Datum selection and inspection feasibility
- Material selection
- Weight-reduction opportunities
- Part consolidation
- Surface-finishing requirements
- Prototyping and production strategies
The goal is to help customers improve manufacturability, reduce unnecessary machining costs, and establish a practical path from prototype validation to repeatable production.
ISO 9001 Quality Control and Inspection
DMS Group-TW currently operates under an ISO 9001 quality management system. We do not claim AS9100D certification.
Quality planning and inspection can be defined according to the customer’s drawings, critical dimensions, application requirements, and order specifications.
Available quality documentation and inspection support include:
- CMM dimensional inspection
- First Article Inspection (FAI)
- Full dimensional inspection reports
- In-process and final inspection
- Material certificates or mill test certificates, when required
- Surface-finish verification
- Inspection records for critical features
Inspection scope and documentation requirements can be reviewed and agreed upon before production.
UAV Components We Manufacture

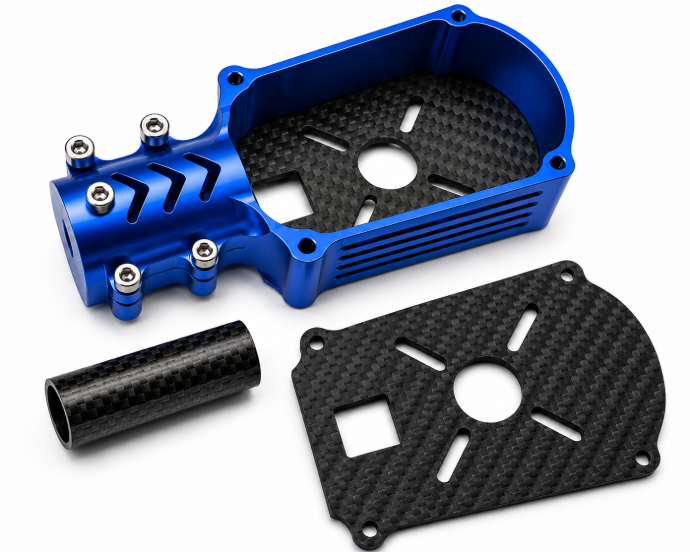

Motor Housings and Brushless Motor Casings
Precision-machined housings designed to support bearing alignment, heat dissipation, structural rigidity, and lightweight construction.
Precision Motor Shafts and Rotor Components
CNC-turned shafts and related propulsion components manufactured to drawing-defined dimensional and geometric tolerances.
Gimbal and Camera-Stabilization Components
Gimbal brackets, camera mounts, optical payload frames, and support structures for imaging, inspection, mapping, and surveillance systems.
Carbon-Fiber Interface Components
Precision-machined clamps, boom connectors, inserts, and metal interface parts for integration with carbon-fiber tubes and structures.
Flight Controller and Avionics Enclosures
Custom housings that support accurate PCB mounting, connector alignment, heat management, and protection appropriate to the project’s environmental requirements.
Outer Rotor Bells and Rotor Caps
Accurately machined rotating components that support balance, concentricity, and smooth motor operation.
Propeller Hub Adapters and Quick-Release Mounts
Lightweight mounting components designed for secure propeller installation, accurate positioning, and efficient maintenance.

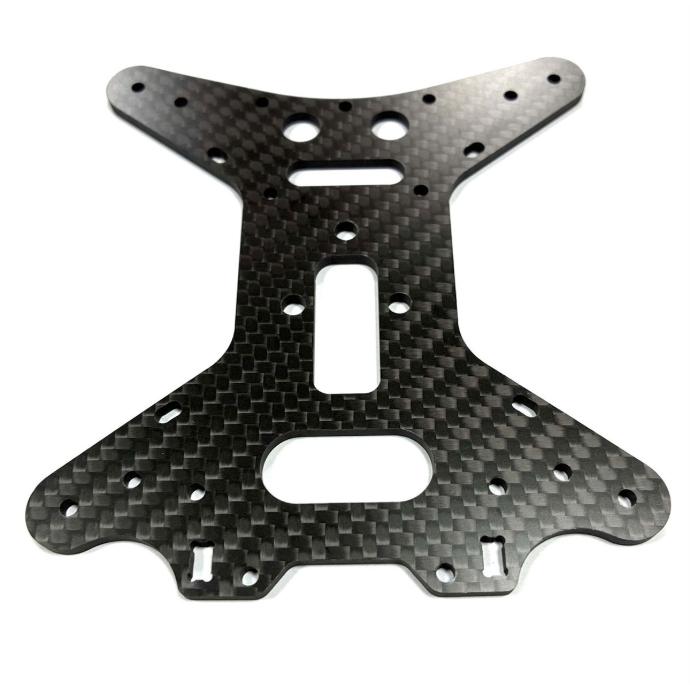

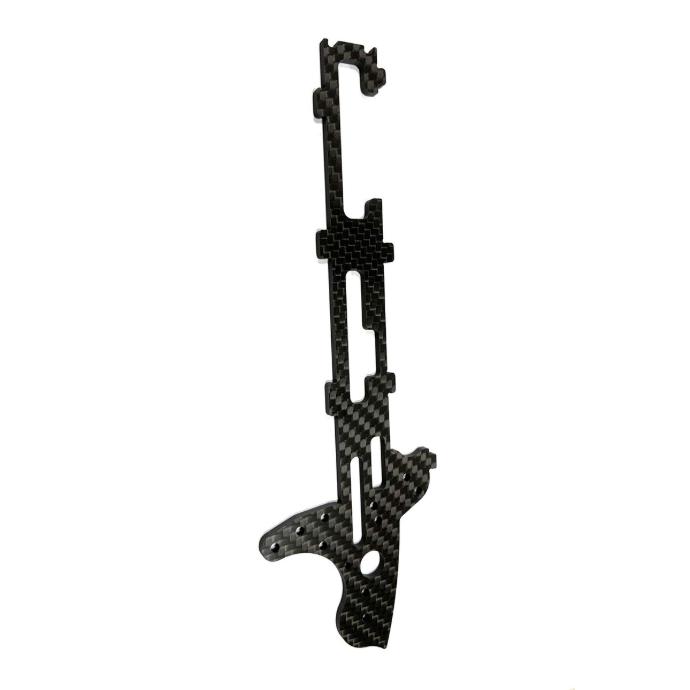

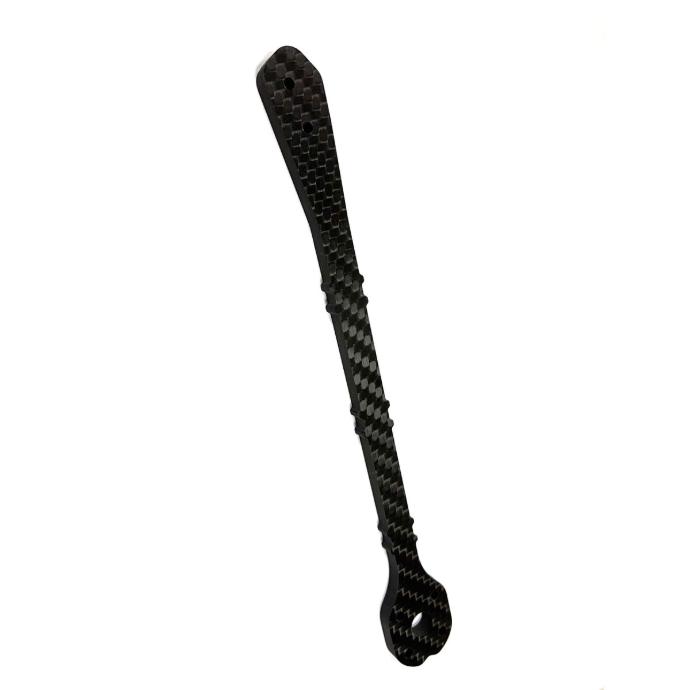

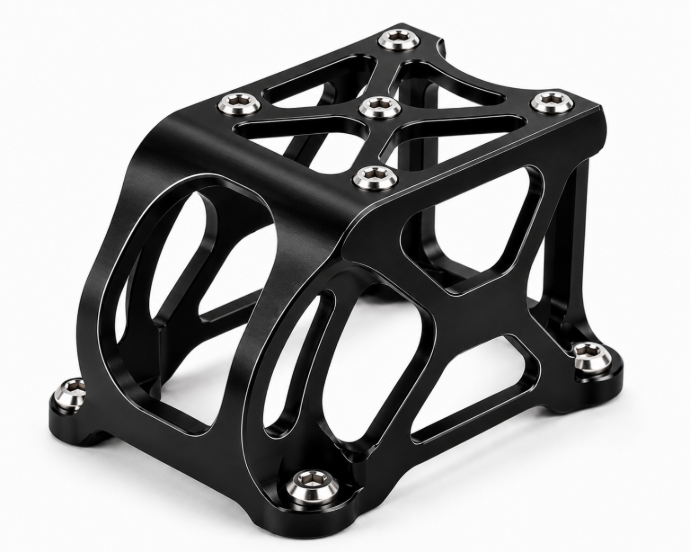

UAV Frames and Folding-Arm Mechanisms
Structural components designed to balance weight, strength, assembly accuracy, and repeatable movement.
Landing Gear Components
Custom structural parts, mounts, and assemblies designed around the UAV’s weight, operating environment, and landing requirements.
Battery Cradles and Quick-Release Systems
Battery retention and mounting components developed for secure installation, repeatable positioning, and efficient maintenance.
Materials and Surface Finishing
We machine materials commonly used in lightweight, high-performance mechanical systems, including:
- Aluminum 6061, 6082, and 7075
- Stainless steel 303, 304, and 316
- Titanium alloys
- PEEK and other engineering plastics
- Customer-specified materials, subject to review
Available surface treatments and secondary processes include:
- Type III hard-coat anodizing
- Clear and black anodizing
- Passivation
- Powder coating
- Bead blasting
- Laser marking
- Fabrication and TIG welding
- Mechanical assembly
Material selection, treatment specifications, and certificate requirements should be confirmed during project review.
From Prototype Validation to Production
DMS Group-TW supports UAV projects across different development stages:
- Drawing, 3D model, and requirement review
- DFM and material evaluation
- Prototype machining
- First Article Inspection and design validation
- Low-volume or pilot production
- Fixture and process optimization
- Production-scale manufacturing and final inspection
Our integrated capabilities include CNC milling, CNC turning, 5-axis machining, sheet-metal fabrication, welding, surface finishing, and mechanical assembly.
Applications We Support
Our manufacturing capabilities can support components for:
- Commercial drones
- Industrial inspection UAVs
- Agricultural drones
- Surveying and mapping UAVs
- Imaging and optical payload systems
- Autonomous aerial platforms
- Heavy-lift UAVs
- AI-enabled aerial robotics
- Custom UAV research and development projects
Discuss Your UAV Component Requirements
Whether you are validating a new UAV platform, improving an existing component, or preparing a design for production, DMS Group-TW can review your drawings and help identify a suitable manufacturing approach.
Send us your 2D drawings, 3D models, material requirements, target quantities, critical tolerances, and inspection requirements to begin a technical and DFM review.
